Learning Java Basic For Android

Class—is a SELF-CONTAINED set of instructions (properties and methods) on how to CREATE an object. Hence, a class is a BLUEPRINT on how to build an object. It is not the object but a set of instructions on HOW TO build an object. If you are building a house from a blueprint, you would not set the blueprint on the carpet in your office and stand on it and say this is where my bed room is.

• All OOP languages come with a set of built-in classes called a standard/class library (e.g., Java Class Library) or a framework (e.g., .NET Framework) that you can start to use right away instead of having to create a class for everything that you do which would be very time-consuming. However, you will typically still new to write your own classes for a particular need in your app.
• As an advanced topic on classes, you can also nest classes for the following reasons:
• It is a way of logically grouping classes that are only used in one place: If a class is useful to only one other class, then it is logical to embed it in that class and keep the two together. Nesting such "helper classes" makes their package more streamlined.
• It increases encapsulation: Consider two top-level classes, A and B, where B needs access to members of A that would otherwise be declared private. By hiding class B within class A, A's members can be declared private and B can access them. In addition, B itself can be hidden from the outside world.
• It can lead to more readable and maintainable code: Nesting small classes within top-level classes places the code closer to where it is used.

Object—once an object is created, it contains ALL of the properties and methods of its class and it works independent of other objects create by the same class.

• Because a single class can create multiple copies of an object, each copy is called an INSTANCE of that class. The process of creating an object is called INSTANTIATION.
• Because each instance of a class is a new object, they all have to have a unique name so that they can be reference (talked to) in your code.
• Objects can be visible (e.g., box) or invisible (e.g., date, time, sound). Like the real world, invisible objects are DISPLAYED (made visible) through visible objects. For example, while you cannot see “time,” you can “see” it displayed through other objects like a watch, clock, computer, etc. Again, while you cannot see “date,” you can “see” it displayed through other objects like a calendar, phone, computer, etc.
• ALL objects have two major characteristics that are sometimes referred to by difference names but the concepts are the same:
• Properties and Methods
• States and Behaviors
• Attributes and Operations
• Data and Logic
  NOTE:
• We will use the words properties and methods in this training module.
• The first word (e.g., properties or attributes) represents the CURRENT STATE of the object and the second word (e.g., behaviors or operations) represents the STATE it can CHANGE to.
• An object STORES its STATES (variables) in what are called FIELDS and EXPOSES its BEHAVIORS (functions) in what are called METHODS.
• You can determine is something is an object in OOP if it is a noun. Remember, for elementary school that a noun represents a person, place, thing, idea or concept (e.g., car, house, gamer, event). As an alternative, you can also place the definite article “the” in front of them (e.g., the car, the house, the gamer, the event). Hence, objects in OOP mimics real world objects.

Abstraction— to “abstract” (express a quality or characteristic apart from any specific object or instance) the ESSENTIAL ELEMENTS of an object. For example, we do not want to create a separate class for a small house or a separate class for a large house but simple ONE class that has characteristics COMMON to ANY house.

Encapsulation—to “encapsulate” (to become enclosed in as if in a capsule) an object properties and methods INSIDE of a class definition to protect it from the outside. This is akin to an encapsulated pill that protects the content of the medicine on the inside of the capsule. Encapsulation also “hides” the internal working on an object. For example, you don’t know or you don’t care how the internal mechanics of a car engine works—all you care is that the engine works when you get into it to drive it. Encapsulation encloses the internal workings of an object in a “black box” of sort. The object should not reveal anything about itself other than what is actually needed by other objects. For example, the engine reveals its gears to the transmission which reveals itself to the axles that in turn turns the wheels.

• Encapsulation is sometimes referred to as DATA HIDING, where you “hide” the data of the object and only “expose” what is needed—its API (Application Programming Interface).
• Encapsulation is also responsible for REDUCING DEPENDENCES on other objects so that if a change needs to be made in a class, it does not cascade to other classes or more accurately objects based on those classes so that they would need changing to.

Inheritance—instead of creating a similar class from start-to-finish, inheritance allows you to create another class that inherits all of the properties and methods of its parents. However, the child class can have its own set of properties and methods independent of its parent class. Also, that object can override properties and methods of its parent class. In real life, children inherit properties (e.g., skin, hair and eye color) of their parents unless they define their own properties (e.g., change their hair color). The relationship between the parent and child class is called the Superclass (parent) and the Subclass (child), respectively. In it important to note that when changes are made to the parent class, those changes may cascade to any children classes because they are based on the parent class. Inheritance allows you to reuse existing code.

• Once you have created a class that inherits all of the properties and methods of its parent class, you can gain access to those properties and methods using the keyword super (e.g., super.myParentClassMethod).
• Inheritance does not restrict you from adding additional properties and methods to the new class.
• Classes can inherit from other classes as you will see later. This is akin to a child inheriting from its parent which in turn inherited from its parent and so on.

Polymorphisim—“poly” means “many” and “morph” means “form” so polymorphism is creating “many forms” of the same class by OVERRIDING (modifying existing) properties and methods of its parent class OR by ADDING NEW properties and methods that does not exist in its parent class  to create a custom class from it in another form. For example, a House class that was based on its parent class can override a property called elevation to change the look of a custom house.

Knowing all of these concepts will help you to make your code more efficient. For example, creating multiple small objects instead of one large object has the following advantages:

• Modular—source code of an object can be maintained independently of the source code of other others so that that object can be used anywhere in your app. (OOP concept: Packaging)
• Data Hiding—object data can be hidden from outside world and can only be given access when needed (OOP concepts: encapsulation, properties and methods).
• Code re-use—code can be re-used in other parts of your app (OOP concept: Inheritance)
• Mobility—objects can stand by themselves and moved about at will or even deleted if a feature is no longer needed (OOP concept: Objects)
• Easy Debugging—because objects work independent of each other and are responsible for their own problems, your app will be easier to debug because you can remove it from your app and replace it with another object that works (OOP concepts: Instantiation)

There are several steps that you can used to determine how to build an app:

Determine the functional (e.g., features) and non-functional (e.g., help) requirements that the app MUST have not like to have. A common practice is to use the acronym FURPS+ when referring to these requirements:

• Functionality - Capability and features
• Usability - Human Factors/Aesthetics/Documentation/Responsiveness
• Reliability - Robustness/Durability/Resilience
• Performance - Speed/Scalability
• Supportability - Service/Maintenance
• + Design requirements – (e.g., iPhone, Android or both)
• + Implementation requirements – (e.g., programming language used, data-base driven)
• + Interface requirements – (e.g., how does it interfaces with other systems)
• + Physical requirements – (e.g., physical constants like size, weight)
• Describe what the app will do
• Identify the key objects the app will used to create the classes
• Determine how objects interactive with each other
• Create a class diagram depicting the app

Once you have established a list of "must-have" requirements, you can now set your attention on how a user will use the app by writing a use case diagram that has a:

• Title (What is the goal of the app?)—a  short phrase using a verb (e.g., register a new user)
• Actor (Who is using the app?)—the term actor is used because it could be someone other than a user (e.g., customer, student, or even an external source such as a database or another app). You may have more than one actor (e.g., employee, HR, manager or admin with different security roles)
• Scenario (How will the app be used?)—information on how to accomplish goal in a series of sentences or as a number of bullet list that can easily be read by a user.

  EXAMPLE: User provide login credentials (username and password). App validates user credentials and open home page or activity. User browser content of app. User log out of app.

  NOTE: You can also include additional steps (e.g., if the user did not entered the correct credential what would happen—he/she may get locked out of the app)

User Story is simpler than a use case and it has the following syntax that are typically written on index cards:

• As a… (user type)
• I want… (goal)
• So that… (reason)

EXAMPLE:

• As a user
• I want to be able to search for key words
• So that I can have a better understand of the concept

  NOTE:  You will likely have multiple user stories (e.g., admin, customer, HR).

  NOTE: For both use cases user stories, it is important to note that you are describing INTENTIONS not how it is done (not click this, do that).

Now that you have determine the requirements for an app and the users of the app, it is time to identify classes that we can create and show how they relate to one another.

1. Since classes are nouns, review your scenario and look for nouns in the paragraphs or list to determine what potential classes you may need to create and write them in a list.
2. Remove any duplicate items or items that are not needed.
3. Place each item in a box so that you can see the potential relationships between them.
4. Draw lines between the box to show relationships between the various items
5. Add key words between boxes and add symbols (1 and *) only if necessary to show multiple relationships (e.g., shopping cart can contain multiple items).

REPLACE LATER WITH OWN SCREENSHOT:

NOTE: This is similar to database development where you:

• Create IT
• Relate IT
• Populate IT

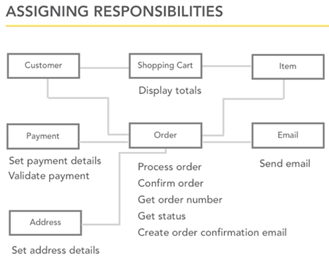

Like nouns that were used to identify the potential classes needed, now we will look for verbs or verb phrases in our scenario to ASSIGN potential responsibilities to methods for that class.

1. Review your scenario and look for verbs or verb phrases in the paragraphs or list to determine what potential methods you may need to create and write them in a list.
2. Remove any duplicate items or items that are not needed.

NOTE: It is sometimes difficult to determine where to assign a responsibility (method) to what class. For example, if you have a responsibility called "Check Order", do you place that responsibility on the Order or Customer class? It is important to remember that an object is responsible for itself. So even though the customer may want to know the status of an order, it is the responsibility of the Order class to do that function (method)—getOrder().

REPLACE LATER WITH OWN SCREENSHOT:

NOTE: It is important to note that the screenshot is not showing who initiate these functions (e.g., customer) but where the responsibilities lies for performing them (e.g., order). While the customer may be initiating actions like get order or confirm order, these actions are ACTUALLY performed in the Order class.

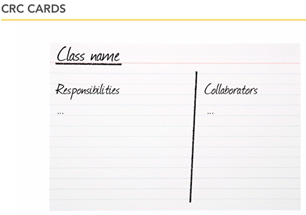

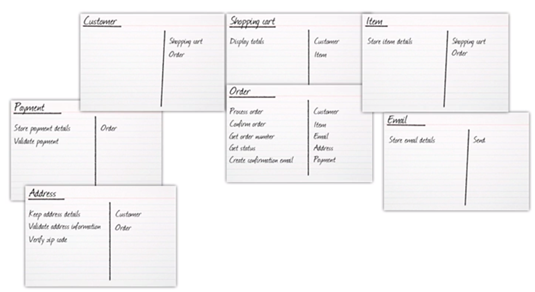

As an alternative to identifying classes, you could use a simpler approach called CRC (Class, Responsibility and Collaboration) Cards that are written on index cards with the Class name on top and then the Responsibilities taking about 2/3 of the card and collaborators taking 1/3 of the card:
REPLACE LATER WITH OWN SCREENSHOT

Now, you are ready to create classes using a class diagram which includes:

1. Class name
2. Properties (attributes)
3. Methods (behaviors/operations)

Steps in writing a class diagrams:

1. Write Class name with first letter capitalized and is singular.
2. Write properties using a common naming conventions like camelCase.
3. Optionally, add data types to the properties (e.g., isLogin: Boolean) and DEFAULT values (e.g., name = "New Employee") using an equal sign and then the data type.
4. Write methods typically using the prefixes "get" and "set" in front of the methods to describe methods that retrieves or modifies data, respectively. Methods are suffixed with a set of parenthesis (e.g., getName() ) and may have arguments.
5. Optionally, add return types (e.g., getName(): String) using a colon and then the return type if the method returns a value. If the method performs an action, then you don't use a return type.
6. Add plus (+) or minus (-) signs BEFORE the properties and methods to denote if they are private or public, respectively. When the sign is minus (private), it controls the VISIBILITY of the property or method to other objects. Note that while you can have a property that is private (-name), you can also have a method that is public (+getName) to ascertain its value without changing the value. Methods are typically public. However, there may be cases where you want to make them private. For example, when you want to format a currency value, you can make it private (e.g., formatCurrency) because other objects don't need to access this method directly.
7. Optionally, you can add notes outside of the class diagram.



   TIP: Many IDEs will automatically generates getters and setters. Many IDEs will automatically generates getters and setters.Many IDEs will automatically generates getters and setters.Many IDEs will automatically generates getters and setters.

REPLACE LATER WITH OWN SCREENSHOT

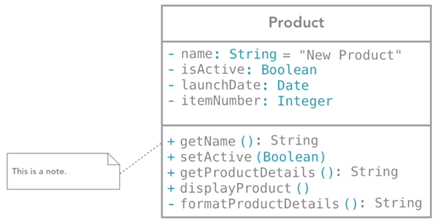

EXAMPLE OF A CLASS DIAGRAM:

Once you have a class diagram, you can use it to create Java code from it.

REPLACE LATER WITH OWN SCREENSHOT

EXAMPLE:

From this:

To this:

USE MY CODE:

class MyBox {

int height=100;
int width=100;
string color = "blue";

void setHeight (int newHeight) {
height = newHeight;
}

void setWidth (int newWidth) {
height = newWidth;
}

void setColor (int newColor) {
color = newColor;
}

void printProperties () {
System.out.println("Box height: " + height + "Box width: " + width + "Box color: " + color);
}

}

NOTES:

• Notice that the MyBox class does not contain a main method because it is a blueprint of the object and not the actual object. The responsibility of creating a MyBox object belongs to the class in your app.
• Method declaration can include several elements:
• Modifiers—private or public access modifiers (or other that will be discussed later)
• Return Type—data type of value returned by the method. If the method does an action and not return a value, the keyword void is used instead.
• Parameters—a comma delimited list of parameters preceded by their data types. If no parameters are needed, the parenthesis can be left blank.
• Exception list—discussed later.
• Method body—the code inside of the curly braces.
• A method signature is defined as the method's name AND its parameter types.
• It is a common convention to have a method as two words in camelCase where the first word is a verb and the second word is an adjective or noun (e.g., getTotal, setHeight)

class MyBoxDemo {
public static void main(String[] args) {
// Create two boxes
MyBox box1 = new MyBox();
MyBox box2 = new MyBox();

// Invoke box's methods:
box1.newHeight(50);
box1.newWidth(50);
box1.newColor("red");
box1.printProperties();

box2.newHeight(50);
box2.newWidth(50);
box2.newColor("green");
box2.printProperties();
}
}

The output should read:

Box height: 50  Box width: 50 Box color: red
Box height: 25  Box width: 25 Box color: green

NOTES:

• In the statement (MyBox box1 = new MyBox();), the first MyBox represents the class name and the second MyBox represent a new instance of the MyBox class. While the code make seem convoluted because it has the MyBox name on BOTH side of the equal sign, the syntax is ALWAYS the same and after a while it will become second nature to you to use it.
• It is a common naming convention to have the first letter of a class capitalized (e.g., MyClass)
• It is also a common naming convention to have the first word of a method name as  a verb (e.g., getTotal)

QUESTION: What would happen if you don't pass arguments to the methods when the object is instantiated (e.g., box1.newHeight())?

• The compiler would throw an error because it is EXPECTING arguments.
• It will work but only give you the defaults values (e.g., Box height:100 Box width:100 Box color:blue)

While the above code works, it will generate an object AND then you have to assign STATES to it. We will see later how to use a constructor method to define the STATES when the object is created.

NOTES:

• The class definition name is public and start with a capital letter and all of the other code is "encapsulated" inside a set of curly braces (public class Classname {…}).
• Properties (attributes) are represented as instance variables. Remember, a property is variable of a class. Instance variables are variables that belong to an instance of a class. Any object created from an instance of this class will have a COPY of these variables unique to that object. They are sometimes called fields or members????
• Methods (behaviors) are represented by functions. Remember, a method is a function of a class. If it performs an action instead of returning a value, it uses the keyword "void."  If it does return a value, it will use the key word "return."
• Public and private keywords represent the visibility of a property or method.
• The Java class syntax is identical in C# and similar in other OOP languages like VB.NET, Ruby, etc.

Designed Patterns are well-tested best-practices solutions to common software development. For example, there is:

• MVC—use to create a Model, View and Controller
• Singleton—used to
• Observer Design Pattern—used if one object changes it will let other objects know the change took place.
• Memento Design Pattern—used if an object will changed other objects and be able to undo the last change.

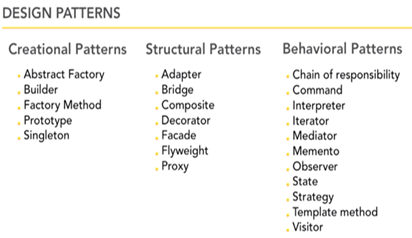

Design Patterns are best known from the book Design Patterns (often referred to as the Gang of Four) that details 23 Design Patterns split in three categories:

Creational Patterns—deals with the creation of objects

Structural Patterns—deals with how classes are designed

Behavioral Patterns—deals with communication between objects

RETYPE IN TEXT

• Tutorials Point
• The Java™ Tutorials

Below is a list of resource books that you can use:

• Software Requirement by Karl Wiegers—initial stages of determining requirements
• Writing Effective Use Cases by Alistair Cockburn—use case diagrams
• User Stories Applied for Agile Software Development by Mike Cohn – user story format
• UML Distilled by Martin Fowler—UML diagram.
• Refactoring by Martin Fowler—how to improve code design
• Design Pattern—by the Gang of Four mentioned earlier written with C++.
• Head First Design Patterns—design pattern using Java.
