Create New Project

There are times when you want to show a collection of related data (e.g., books, movies) in an easy-to-read format.  A ListView is a great candidate for this this of task. A ListView will create a scrollable list of items that can be displayed.

In this tutorial, we will create an app that will a ListView of Adobe Apps using a string array:

1. Open Android Studio and from the Quick Start panel, select Start A New Android Studio Project.
2. In the New Project dialog box that appears, type Adobe ListView App for the Application name.
3. Type example.com as the Company Domain and accept the other defaults and then click the Next button.
4. In the Target Android Devices dialog box that appears, select only the Phone and Tablet checkbox, its default Minimum SDK and then click the Next button.
5. In the Add an activity to Mobile dialog box that appears, select the Empty Activity option and then click the Next button.
6. In the Customize the activity dialog box that appears, accept defaults and then click the Finish button.

As in many objects that are created, we will:

1. Create objects (with elements and styles)
2. Give objects names (with ids and resource strings)
3. Tell objects to do something (with Java code)
   Even within the Java code, you still do the same thing:
   1. Create objects
   2. Give objects names
   3. Tell objects to do something
      NOTE: While you can do most of these items in any combination, we will do it in the order above to start with the simple concepts (creating and naming objects) and then move to the more advanced concept (adding code).

Create Object with Element

In this second version of the Adobe Apps, we will drag-and-drop a ListView component onto the screen and the use an Adapter and an array to populate the ListView.

1. In the activity_main.xml file that opens, in Design view, right-click on the Hello World text and select Delete from the menu.

2. From the Palette panel, drag-and-drop a ListView component and center it within the screen.
3. (Optional) In the Component panel, select the RelativeLayout compound and then in the Properties list , delete all four padding properties so that the ListView takes up the entire screen.



   android:paddingBottom="@dimen/activity_vertical_margin"
   android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"



4. CHECK POINT: In the preview panel, you should see the default ListView with items and sub-items that are generated by the framework. If you were to preview it in an emulator, you would not see the ListView.




5. (Optional) In the Text View, add a background property to the Relative Layout element to a color that goes well with black text:



   android:background="#5151fe">

6. (Optional) In the ListView component, you can add a divider color and divider height properties if you want to:



   <ListView
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:id="@+id/ListView"
       android:layout_alignParentTop="true"
       android:layout_centerHorizontal="true"
       android:divider="#cccccc"
       android:dividerHeight="1dp"/>

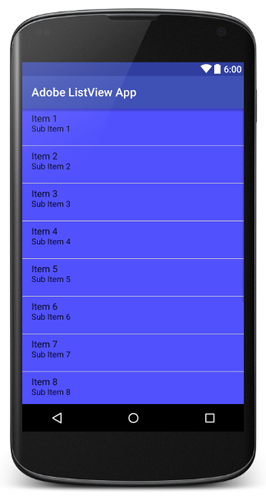

7. CHECK POINT: In the preview panel, you should see the optional background color and divider lines with a height of one pixel.



Give Object Name with ID

While you could have done this at the SAME time you created the ListView component above, we wanted to do it in a systematic approach. However, in real production, it would be best to create the components and give them names at the same time they are created.
IMPORTANT CONCEPT TO REMEMBER: It is important to name every component that will be used by Java code with an id. The id is used to store a reference of the element in a Java object as you will see later.

1. Give the ListView component a more descriptive id property of appsListView.



   <ListView
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:id="@+id/appsListView"
       android:layout_alignParentTop="true"
       android:layout_centerHorizontal="true"
       android:divider="#cccccc"
       android:dividerHeight="1dp"
       />

Tell Object To Do Something with Code

1. Right-click on the Values folder and select New > XML > Values XML file and give it a name of adobe_apps.
   NOTE: It does not matter which folder you right-click on, the XML file will be created in the values folder if the Values XML file is selected.

2. In the XML file that is created, add the following highlighted attribute and elements between the resource tags to create an XML resource file:



   <?xml version="1.0" encoding="utf-8"?>
   <resources>
       <string-array name="adobe_apps">
           <item>Dreamweaver</item>
           <item>Photoshop</item>
           <item>Illustrator</item>
           <item>InDesign</item>
           <item>Animate</item>
           <item>After Effects</item>
           <item>Premiere Pro</item>
           <item>LightRoom</item>
           <item>Muse</item>
           <item>Fuse</item>
           <item>Acrobat Pro</item>
           <item>Audition</item>
           <item>Audition</item>
       </string-array>
   </resources>



   CODE EXPLANATION:
   - This simple create an array of string values for some of the adobe apps.


3. In the activity_main.xml file add the following highlighted attribute in the ListView element:



   <ListView
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:id="@+id/appsListView"
       android:layout_alignParentTop="true"
       android:layout_centerHorizontal="true"
       android:divider="#cccccc"
       android:dividerHeight="1dp"
       android:entries="@array/adobe_apps"/>



   CODE EXPLANATION:
   - The entries attribute is used to populate the ListView with the array of strings from the adobe_apps.xml file that was created earlier. This attribute is useful when you want to create a list of PRESET items within your app. However, a more FLEXIBLE approach will be explained in the upcoming steps.
4. CHECK POINT: Run the app in an emulator. You should be able to scroll through a list of apps.
5. Delete the attribute (android:entries="@array/adobe_apps") that was added in the previous step.

6. In the MainActivity.java file, add the following highlighted code:



   public class MainActivity extends AppCompatActivity {

       // Create a reference variable
       private ListView myListView;

       @Override
       protected void onCreate(Bundle savedInstanceState) {
           super.onCreate(savedInstanceState);
           setContentView(R.layout.activity_main);
      // Get reference of ListView from XML file
       myListView = (ListView) findViewById(R.id.appsListView);

       // Get array of apps from string array string resources
       String[] apps = getResources().getStringArray(R.array.adobe_apps);
       // BETWEEN the data and ListView is the adapter which "adapt" array elements to list items
       ArrayAdapter<String> appsAdapter = new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1, apps);
       myListView.setAdapter(appsAdapter);

      /* // Alternative
       myListView.setAdapter(new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1,
               android.R.id.text1, getResources().getStringArray(R.array.adobe_apps)));*/
       }
   }



   CODE EXPLANATION:
   - Notice that a LISTVIEW is CREATED, an ARRAY is used to POPULATE it and an ADAPTOR is used to CONVERT it so that it can be used by the ListView.
   - There are three or four arguments that are used in the ArrayAdapter (Content, XML Layout, Text View and ArrayName).
      - The Content this is an alias for getApplicationContext(). Either one will work.
      - The XML Layout and the Text View are being called from the Android framework by prefixing the arguments with android.R.layout and android.R.id. The android.R.layout contains only a text view.
      - The ArrayName is the name you created earlier. You will see later how to create a custom layout for the ListView.

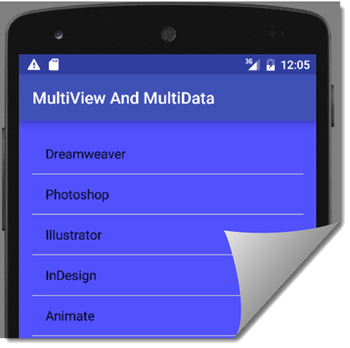

7. CHECK POINT: Preview the app using the emulator. You should now see the ListView displays with the elements from the array. While it may not be obvious, you can also scroll the list to see additional list items.

Using a ListView Activity

 Because the ListView is used in most apps, there is a dedicated ListView activity that can be used instead of the default view. It has several advantages:

• it offers some convenient methods that allows you to access the list and the list adapter.
• it allows you to access an empty view. There are cases where the list view could be empty so you could display and empty view instead to inform the user the list has no data.
• The empty view is automatically handle by the ListView.

We will modify the previous example to use the ListView Activity.

1. In the Properties panel, change the id property from appsListView to a build-in Android id:



   android:id="@android:id/list" />



2. In the MainActivity.java file:
   1. change the activity from AppCompatActivity to ListActivity
   2. delete or comment out the highlighted commented lines
   3. add the setListAdapter(appsAdapter) method



      public class MainActivity extends ListActivity {
          // Create a reference variable AppCompatActivity
          // private ListView myListView;

          @Override
          protected void onCreate(Bundle savedInstanceState) {
              super.onCreate(savedInstanceState);
              setContentView(R.layout.activity_main);

          // Get reference of ListView from XML file
              // myListView = (ListView) findViewById(R.id.appsListView);

              // Get array of apps from string array string resources
              String[] apps = getResources().getStringArray(R.array.adobe_apps);
              // BETWEEN the data and ListView is the adapter which "adapt" array elements to list items
              ArrayAdapter<String> appsAdapter = new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1, apps);
              // myListView.setAdapter(appsAdapter);
              setListAdapter(appsAdapter);

              /* // Alternative
              myListView.setAdapter(new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1,
                      android.R.id.text1, getResources().getStringArray(R.array.adobe_apps)));*/
          }
      }

3. CHECK POINT: Run the app in an emulator. You should see the same result as the previous check point. In the next series of steps we will see how to check for an empty view.
4. In the strings.xml file add the following highlighted string resource that will be used for the empty view.



   <resources>
       <string name="app_name">Adobe ListView App</string>
       <string name="empty_list">No data is available.</string>
   </resources>



5. Below the closing ListView component tag but inside of the RelativeLayout component tag, add the following highlighted TextView with a built-in android id attribute and other attributes:



   android:id="@android:id/list" />
   <TextView
           android:layout_width="match_parent"
           android:layout_height="match_parent"
           android:id="@android:id/empty"
           android:gravity="center"
           android:text="@string/empty_list"/>
   </RelativeLayout>



6. CHECK POINT: in the Preview window, you should see the message "No data is available." aligned to the center of the screen. Now, run the app in an emulator. You should wee that since there is data the message is not shown. In the following series of steps will will emulator no data being sent to the list-view.


7. In the MainActivity.java file, TEMPORARIRY change the apps array to an literal empty array:



   ArrayAdapter<String> appsAdapter = new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1, new String[]{});



8. CHECK POINT: Run the app in an emulator. You should only see the message "No data is available." and not the list-view.




9. Change the array back to the apps array:



   ArrayAdapter<String> appsAdapter = new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1, apps);

STOP HERE >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Add An ItemClick Event Listener

Similar to an onClickListener that are typically used for buttons and images, a ListView has the setOnItemClickListener.

1. Write the following highlighted code below the previous code that was added to create a onItemClick Event Listener.



    // Define Adapter to "adapt" Array elements to List items
    myListView.setAdapter(...);
    // Set setOnItemClickListener
    myListView.setOnItemClickListener(new OnItemClick

   NOTE: DO NOT COMPLETE THE CODE


2. After typing OnItemClick, press the the ENTER key.
3. CHECK POINT: The following highlighted code will be AUTOMATICALLY written for you and the cursor will be placed within the code block where you will add additional code. How cool is that!!!



   // Set setOnItemClickListener
           myListView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
               @Override
               public void onItemClick(AdapterView<?> parent, View view, int position, long id) {

               }
           });



   CODE EXPLANATION:
   - There are five arguments that are used in the onItemClickAdapter (GenericView, parent, view, position, id).
       -  GenericView represents a generic view as the name implies.
      -   parent is alias for the name of the list view name (e.g., myListViwe()).
       -  view represents list item row that was clicked.
      -   position represents row number (zero-based)
      -   id is same as position but in other cases may be different.
4. Add the following highlighted code within the onItemClick method:



   // Set setOnItemClickListener
           myListView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
               @Override
               public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                   String clickedValue = myListView.getItemAtPosition(position).toString();
                   Toast.makeText(getApplicationContext(), clickedValue, Toast.LENGTH_SHORT).show();
               }
           });



   CODE EXPLANATION:
   - The clickedValue variable is a ListView so it needed to be CASTED to a string on the right side of the equal sign with the toString() method.
   - The clickedValue variable represents the CURRENT item that was clicked based on the position argument in the onItemClick method.
5. CHECK POINT: Preview the app using the emulator. You should now see that if you click on any of the list's item a Toast will appear showing the name of the list item that was clicked.




6. (Optional) Modify the event handler code to read. This is an alternative way of getting the app name from the XML file:



   public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
       // String clickedValue = myListView.getItemAtPosition(position).toString();
       String clickedValue2 = (String) parent.getAdapter().getItem(position);
       Toast.makeText(getApplicationContext(), clickedValue2, Toast.LENGTH_SHORT).show();
   }

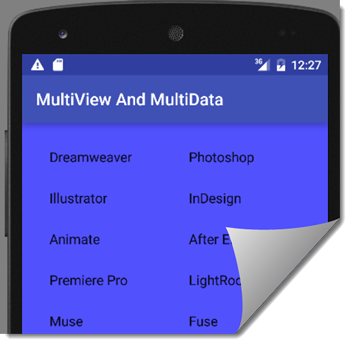

   ALTERNATIVE: GRID VIEW
   A GridView is a 2-dimensional grid of items instead of a list of items. However, because it is so similar to the ListView, it can be easily converted by modifying a few lines and words in both the XML and Java files:

   1. In the activity_main.xml, delete the two divider attributes and add a numColumns attribute with a value of 2:



   <GridView
       android:layout_width="match_parent"
       android:layout_height="match_parent"
       android:id="@+id/appsListView"
       android:layout_alignParentTop="true"
       android:layout_centerHorizontal="true"
       android:numColumns="2"/>


   2. In the Main_Activity.java file, change ALL of the references of myListView to myGridView::



   public class MainActivity extends AppCompatActivity {

       private GridView myGridView;

       @Override
       protected void onCreate(Bundle savedInstanceState) {
           super.onCreate(savedInstanceState);
           setContentView(R.layout.activity_main);
           // Get reference of ListView from XML file
           myGridView = (GridView) findViewById(R.id.appsListView);

           // Define Adapter to "adapt" Array elements to List items
           myGridView.setAdapter(new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1,
                   android.R.id.text1, getResources().getStringArray(R.array.adobe_apps)));
           // Set setOnItemClickListener
           myGridView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
               @Override
               public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                   // String clickedValue = myListView.getItemAtPosition(position).toString();
                   String clickedValue2 = (String) parent.getAdapter().getItem(position);
                   Toast.makeText(getApplicationContext(), clickedValue2, Toast.LENGTH_SHORT).show();
               }
           });
       }
   }

   3. CHECK POINT: Run the app in an emulator. You should see that it behaves the same as the ListView when items are clicked. However, the items are now displayed in two column per the numColomn attribute.




DELETE FROM HERE >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Create Custom Layout for ListView

As with most View components, you can customize them by creating a separate XML file as a template and then inflate it.

1. Right-click on the layout folder (not the drawable folder) and select New > Layout Resource File to create the actually list row.
2. In the New Resource File dialog box that appears, in the File name text field enter custom_listview_row
3. In the Root element text file, enter RelativeLayout, accept the other defaults and then click the OK button.
4. In the Text view, add the following highlighted attributes and elements:



   <?xml version="1.0" encoding="utf-8"?>
   <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
       android:layout_width="match_parent"
       android:layout_height="wrap_content"
       android:background="@drawable/custom_listview_selector"
       android:orientation="horizontal"
       android:padding="5dp">

       <LinearLayout
           android:id="@+id/thumbnail"
           android:layout_width="wrap_content"
           android:layout_height="wrap_content"
           android:layout_alignParentLeft="true"
           android:layout_marginRight="5dp"
           android:orientation="vertical">

           <ImageView
               android:id="@+id/list_icon"
               android:layout_width="50dp"
               android:layout_height="50dp"
               android:src="@mipmap/ic_launcher" />
       </LinearLayout>

       <TextView
           android:id="@+id/title"
           android:layout_width="wrap_content"
           android:layout_height="wrap_content"
           android:layout_alignTop="@id/thumbnail"
           android:layout_toRightOf="@id/thumbnail"
           android:text="Adobe Dreamweaver"
           android:textColor="#000000"
           android:textSize="18sp"
           android:textStyle="bold" />

       <TextView
           android:id="@+id/sub_title"
           android:layout_width="wrap_content"
           android:layout_height="wrap_content"
           android:layout_below="@+id/title"
           android:layout_toRightOf="@id/thumbnail"
           android:text="Web and Mobile"
           android:textColor="#ffffff"
           android:textSize="14sp"
           android:textStyle="bold" />

       <ImageView
           android:id="@+id/arrow"
           android:layout_width="wrap_content"
           android:layout_height="wrap_content"
           android:src="@android:drawable/ic_media_play"
           android:layout_alignParentRight="true"
           android:layout_centerVertical="true"/>

   </RelativeLayout>



5. CHECK POINT: You should see the following screen shot. Notice that the second text field is highlighted by not visible because the font color is white against a white background. It will look better later once it is placed against the color background in the activity_main.xml file.





Inflate Custom ListView With Java

1. In the MainActivity.java file, comment out or delete the adapter that was created earlier.
   NOTE: In the upcoming steps, we will create a custom adapter that will be used.



   // ArrayAdapter<String> appsAdapter = new ArrayAdapter<String>(getApplicationContext(),
   // android.R.layout.simple_list_item_1,android.R.id.text1, appsStringArray);



2. Right-click on the java folder and select File > New > Java Class from the menu or from the package folder (e.g., com.example.adobeapps) and in the Choose Destination Directory dialog box that appears, choose the directory ...\app\src\main\java and then click the OK button.




3. In the Create New Class dialog box that appears in the Name text field, enter CustomListViewAdapter and then click the OK button.




4. In the CustomListViewAdapter.java file that opens, type the following highlighted code:



   public class CustomListViewAdapter extends BaseAdapter {
   }



   CODE EXPLANATION:
   - By adding extends BaseAdapter to the CustomListViewAdapter class will allow this new class to inherit all of the methods of the BaseAdapter. However, all of these methods will be overwritten in the next step.
5. Click inside of the class and press ALT+ENTER and then select Implement methods (of the parent BaseAdapter) from the menu.
6. In the Select Methods to Implement dialog box that appears, select ALL of the methods, ensure @Override checkbox is selected and then click the OK button.




7. CHECK POINT: You should see the the four methods of the BaseAdapter were added to the code AUTOMATICALLY:



   public class CustomListViewAdapter extends BaseAdapter {
       @Override
       public int getCount() {
           return 0;
       }

       @Override
       public Object getItem(int position) {
           return null;
       }

       @Override
       public long getItemId(int position) {
           return 0;
       }

       @Override
       public View getView(int position, View convertView, ViewGroup parent) {
           return null;
       }
   }



   CODE EXPLANATION:
   - The getCount() method is used to get the COUNT of how many items are created in the list view.
   - The getItem() and getItemId method are be used to get the POSITION of the item.
   - The getView() method is used to get the customized VIEW.
8. Write or modify the following highlighted code of this class:



   public class CustomListViewAdapter extends BaseAdapter {

       private Context mContext;
       private ArrayList<HashMap<String,String>> topics;
       private static LayoutInflater inflater = null;

       public CustomListViewAdapter(Context context, ArrayList<HashMap<String, String>> data){
           mContext = context;
           topics = data;
           inflater = (LayoutInflater)context.getSystemService(context.LAYOUT_INFLATER_SERVICE);
       }
       @Override
       public int getCount() {
           return topics.size();
       }
       @Override
       public Object getItem(int position) {
           return position;
       }
       @Override
       public long getItemId(int position) {
           return position;
       }
       @Override
       public View getView(int position, View convertView, ViewGroup parent) {
           View view = convertView;
           if (convertView == null){
               view = inflater.inflate(R.layout.custom_listview_row, null);
           }

           TextView title = (TextView) view.findViewById(R.id.title);
           TextView sub_title = (TextView) view.findViewById(R.id.sub_title);
           ImageView image = (ImageView) view.findViewById(R.id.list_icon);

           HashMap<String, String> mTopic = new HashMap<>();

           mTopic = topics.get(position);

           title.setText(mTopic.get("title"));
           sub_title.setText(mTopic.get("sub_title"));
           return view;
       }
   }



   CODE EXPLANATION:
   - IMPORTANT NOTE: While this is a lot of code to process, the good news is that once it is created, you can REUSE this custom adapter code in any other app with little to no change in the code.
   - Instead of starting from scratch, this custom adapter is created from the BaseAdapter class which means that it will inherit all of the methods of that class and then they will be overridden with custom code.
   - The three private instance variables are created so they can be used in the constructor method.
   - The constructor method has to have the same name as the class name with no return type.
   - The HashMap (<HashMap<String ,String>>) uses a key/value pair so both the key and the value will be a string.
   - IMPORTANT NOTE: It is very important to note that the findViewById() methods are attached to the converted view object (e.g., TextView title = (TextView) view.findViewById(R.id.title);) so that it knows which view to get the references (instead of being used by itself (e.g., TextView title = (TextView) findViewById(R.id.title);)).
9. Write the following code in the MainActivity.java file:



   public class MainActivity extends AppCompatActivity {

       private ListView myListView;
       private CustomListViewAdapter customListViewAdapter;

       @Override
       protected void onCreate(Bundle savedInstanceState) {
           super.onCreate(savedInstanceState);
           setContentView(R.layout.activity_main);

           myListView = (ListView) findViewById(R.id.appsListView);

           final ArrayList<HashMap<String,String>> titleList = new ArrayList<>();
           final String[] tittleArray = getResources().getStringArray(R.array.adobe_apps);
           final String[] subtitleArray = getResources().getStringArray(R.array.adobe_apps_subtitle);

           for (int i=0; i<subtitleArray.length; i++){
               HashMap<String,String> data = new HashMap<>();
               data.put("title", tittleArray[i].toString());
               data.put("sub_title",subtitleArray[i].toString());
               titleList.add(data);
           }
           // Create new adapter and assign it to the ListView
           customListViewAdapter = new CustomListViewAdapter(getApplicationContext(),titleList);
           myListView.setAdapter(customListViewAdapter);
           // Add Event Listener
           myListView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
               @Override
               public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                   String myItem = tittleArray[position];
                   Toast.makeText(getApplicationContext(), myItem, Toast.LENGTH_SHORT).show();
               }
           });
       }
   }



   CODE EXPLANATION:
   - The second array (descriptionArray) that is created is used to provide descriptions for each app.
   - The "for" loop is used to loop around the two arrays to POPULATE the titleList object.
   - The event listener (setOnItemClickListener) is used to register the list items events.

10. CHECK POINT: Run the app in an emulator. You should see the custom view layout inflated in the app. If you click on a list item, you should see a Toast message with the name of the app displayed. Also, notice that the icon is the same for each list item. This will be resolved in the upcoming steps:

11. Copy and paste the thirteen app icons into the drawable folder.
12. Add the following highlighted code in the getView() method:



    @Override
        public View getView(int position, View convertView, ViewGroup parent) {
            View view = convertView;
            if (convertView == null){
                view = inflater.inflate(R.layout.custom_listview_row, null);
            }

            TextView title = (TextView) view.findViewById(R.id.title);
            TextView sub_title = (TextView) view.findViewById(R.id.sub_title);
            ImageView image = (ImageView) view.findViewById(R.id.list_icon);

            HashMap<String, String> mTopic = new HashMap<>();

            mTopic = topics.get(position);

            title.setText(mTopic.get("title"));
            sub_title.setText(mTopic.get("sub_title"));

            if(position==0) {
                image.setImageResource(R.drawable.dreamweaver);
            }
            if(position==1) {
                image.setImageResource(R.drawable.photoshop);
            }
            if(position==2) {
                image.setImageResource(R.drawable.illustrator);
            }
            if(position==3) {
                image.setImageResource(R.drawable.indesign);
            }
            if(position==4) {
                image.setImageResource(R.drawable.animate);
            }
            if(position==5) {
                image.setImageResource(R.drawable.after_effects);
            }
            if(position==6) {
                image.setImageResource(R.drawable.premiere_pro);
            }
            if(position==7) {
                image.setImageResource(R.drawable.lightroom);
            }
            if(position==8) {
                image.setImageResource(R.drawable.muse);
            }
            if(position==9) {
                image.setImageResource(R.drawable.fuse);
            }
            if(position==10) {
                image.setImageResource(R.drawable.acrobat_pro_dc);
            }
            if(position==11) {
                image.setImageResource(R.drawable.audition);
            }
            if(position==12) {
                image.setImageResource(R.drawable.phonegap);
            }
            return view;
        }
    }




    CODE EXPLANATION:
    - The image variable (ImageView image = (ImageView) view.findViewById(R.id.list_icon);) is used to get references to the images.
    - Each "if" statement is used to check for the specific position so that the correct image is displayed.

13. CHECK POINT: Run the app in an emulator. This time you should see a different icon for each list item.




(Optional) Add Custom Selector

It is important to note how these components will be knitted together. The listview state xml files are nested inside of the selector xml file which is inside of the row xml which is pulled inside (inflated) in the java file (e.g., CustomListViewAdapter.java):

Not only do you have to create a custom layout, you have to create a custom adapter as well. In order to show the custom ListView, we will have to inflate it with Java.

1. Right-click on the drawable folder and select New > Drawable Resource File.
2. In the Drawable Resource File dialog box that appears, in the File name text field enter custom_listview_normal, accept the other defaults and then click the OK button.
3. In the custom_listview_normal file that opens, replace the text in the first <selector> element with <shape>.
   NOTE: Notice the the closing tag (</shape>) AUTOMATICALLY get updated. How cool is that! The <shape> elements are used because we will be creating a rectangular shape and adding a gradient to it.

4. Enter the following highlighted code to create the NORMAL state of the listview item:



   <?xml version="1.0" encoding="utf-8"?>
   <shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="rectangle">
       <gradient
           android:angle="270"
           android:startColor="#f1f1f2"
           android:centerColor="#7878fa"
           android:endColor="#cfcfcf">
      </gradient>
   </shape>



   CODE EXPLANATION:
   - The <selector> element was replaced by a <shape> with an attribute to create a rectangular shape.
   -  A <gradient> element was added with the start, center and end gradient colors.

5. Copy the custom_listview_normal file and paste it in the same folder but with the name of custom_listview_hover and change only the CENTER color values.
   NOTE: This file will be used to create the HOVER state. If you want to you can change one, two or all three colors.



   <?xml version="1.0" encoding="utf-8"?>
   <shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="rectangle">
       <gradient
           android:angle="270"
           android:centerColor="#5454f5"
           android:endColor="#cfcfcf"
           android:startColor="#f1f1f2">
      </gradient>
   </shape>

6. Right-click on the drawable folder again and select New > Drawable Resource File to create a list selector.
7. In the Drawable Resource File dialog box that appears, in the File name text field enter custom_listview_selector, accept the other defaults and then click the OK button.
8. Add the following highlighted <item> elements:



   <?xml version="1.0" encoding="utf-8"?>
   <selector xmlns:android="http://schemas.android.com/apk/res/android">

       <item android:drawable="@drawable/custom_listview_normal"
           android:state_pressed="false"
           android:state_selected="false">
       </item>

       <item android:drawable="@drawable/custom_listview_hover"
           android:state_pressed="true">
       </item>

       <item android:drawable="@drawable/custom_listview_hover"
           android:state_pressed="true"
           android:state_selected="true">
       </item>

   </selector>

   NOTE: The first <item> element is used if the list item has not been selected and have not been pressed--show the default background (e.g., custom_listview. The second <item> element is used if the list item is presses but not selected. The third <item> element is used if the list item is pressed and selected (user has press and then removed finger from selection).


9. Add custom_listview_selector as an background attribute to the opening RelativeLayout element in the custom_listview_row.xml file.



   <?xml version="1.0" encoding="utf-8"?>
   <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
       android:layout_width="match_parent"
       android:layout_height="wrap_content"
       android:orientation="horizontal"
       android:padding="5dp"
       android:background="@drawable/custom_listview_selector">




10. CHECK POINT: Preview the app in the emulator. You should see the normal state that as added to all list item. If you click on a list item it will change color to reflect the pressed or hover state.
