Project Scopes (Views)

There are several scopes in the Project window. The top two views that you will be using is the Android and Project view.

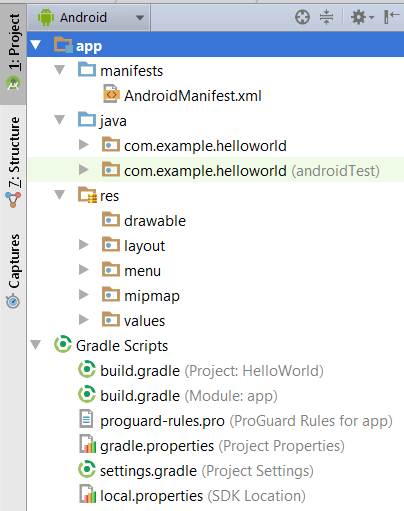

1. Android View

The Android is the default view which organizes assets by type to shows the most important folders and files but does not reflect the actual structure on the computer. In this view, files are hidden that are are used to manager Android Studio so you can focus on files that are modified the most (manifest, java, resources, and Gradle Scripts).

app folder contains:

manifests folder - has the manifest file
- AndroidManifest.xml
java folder - has all of the Java classes
- com.example.helloworld
- com.example.helloword (androidTest)
res folder - has the resources files
- drawable
- layout
- menu
- mipmap
- values

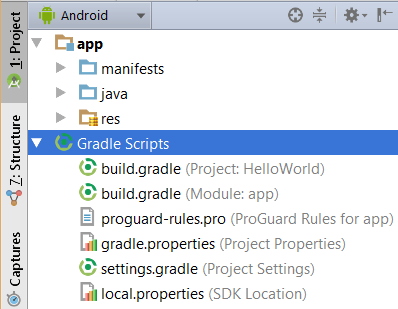

Gradle Scripts contains:

build.gradle (Project HelloWorld)
build.gradle (Module app)
proguard-rules.pro (ProGuard Rules for app) - to manage the ProGuard tool which can help to minimize and obfuscate the code in the Android app package before it is uploaded to an app store.
gradle.properties (Project Properties)
settings.gradle (Project Settings)
local.properties (SDK location)

It is best practice to used the Android view for most development work and use the Project view to view other project files that are not needed on a regular basis.
NOTE: Gradle is the build engine or tool that is used to create an app.

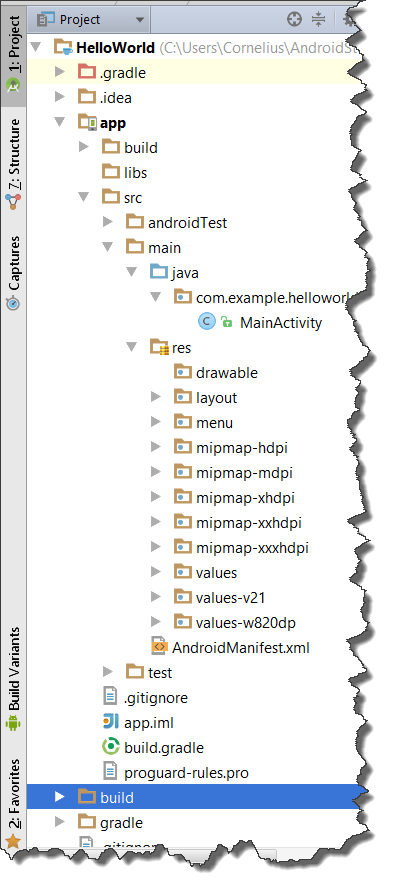

2. Project View

To see the actual directory structure, switch to the Project view (ALT+1 (PC) or CMD+1(Mac)). Android Studio project directory and file names that are always the same. If you hover over the top-level node, you will see the actual location of the project.

TIP: To see the actual folder in your file manager, right-click on the top-level item and select Reveal in Finder on the Mac or Reveal in Explorer on Windows.

NOTE: The other views arrange the structure for a particular perspective or purpose.

If you click on the top-level node, you will see all of the project assets:

.gradle and .idea - contains project configuration information for the development environment used by Android Studio. Folder are seen in Windows but hidden on the Mac.
app folder - contains all the actual app assets.
- build folder - contains all of the compiled resources used during packaging. This include the apk (android package) which is the app binary file that is use to create the app for a device.
- libs (libraries) folder - contains other dependences (e.g., third-parties JAR files). You can add any java library (e.g., jar file) and then register it as a library so that it can be included in project's class path.
  NOTE: Notice there is also an external libraries folder that includes pointers to the API platform being used. (e.g., API 21 for Android 5).
- src (sources) folder - contains all of the Java source files and project resources. It has main, java and res folders as in the Android view
  - androidTest - contains test cases
  - main folder - contain the Android Manifest configuration file where the activities and services are registered.
    - java folder - contains all of the Java packages (e.g., MainActivity.java).
      - class(es) - MainActivity which extends a supper class called ActionBarActivity)
    - res folder - contains the app resources files that are compiled at runtime and are represented by a generated java class called R (for resource). Like CSS, you target items in the res folder by IDs that are assigned to them.
      NOTE: Whenever a change is made to a resource (graphic, xml), the R class is regenerated automatically in the background.
      The R.java contains a reference to all of a project's resource files. It provide connections between the *.java and resource files.
    - src folder - contains source files.
      - main - contains Java, resource and manifest files/
      - test - contains an example unit test (e.g., ExampleUnitTest) for Java testing
      - Android Test - used for Java specific testing.
    - drawable folders - contains image resources with the same image names but in difference directories with qualifiers (e.g., hdpi, mdip, xhdpi) on them that represent particular device densities.
    - mipmapxxxdpi folders (where xxx represents various pixel densities: h (high), m (medium), xh (extra high), xxh (extra extra high) and xxxh (extra, extra, extra high) - contains graphics that appears on the launcher screen. The framework decides which version of a graphic will be used for a given device.
    - layout folder - contains one or more layout resources (e.g., activity_main.xml and content_main.xml) based on screen sizes and resolutions that defines the screen layout appearance in an xml file. Activity_main.xml is the app's screen container. The content_main.xml is within the activity_main.xml in an <include> tag and can be access by pressing the CTRL or CMD key and clicking on the resource link. It contains components (e.g., LayoutView, TextView, Button) that are used in an app. There are two layout views that can be seen: Text view which is the raw xml file or the Design view which is the graphical representation of the layout.
    - menu folder - contains an xml menu resource files (e.g., menu_main.xml) that defines the app's menu
    - values folders - contains value dimension, string and style xml resources resource strings:
      - color.xml -
      - demins.xml -
      - strings.xml - create string resource identities (or ids) so they can be localized or changed for different languages (e.g., English, Spanish).
      - styles.xml -
    - NOTE: You could see other value folders with different names that are used like CSS to override settings in the default value folder. For example, you could have a folder called values_v23 that has files that are used to override settings when running on a device that's using API 23 or greater.
    - AndroidManifest.xml file - contains that androidmanifest.xml configuration file that defines the app package. It has the app elements which defines the launcher icon, label (a string that identify the app), theme (defines the appearance of the app), activities (contains an intent-filter element which defines how the activity is used) and permissions (if a feature can be used).

assets - uncompiled assets that you want to be included when the app is package can be added to a project and placed in this folder. You have to manually create this folder and add content (e.g., audio, fonts, images, *.txt, *.xml, *.html, etc.)
NOTE: To create this folder right-click on the main folder and choose New > Directory, name it assets and then click the OK button.
.gitignore—contains exclusion files that should be ignore when uploading to git
app.iml—contains information about the app module itself.
proguard-rules.pro file - used to manage the ProGuard tool which can minimize and obfuscate the code in the Android app package before it is uploaded to an app store. (MAY NEED TO DELETE AS OF ANDROID 2.0)
Many of the folders are defined in the app.iml file.
gradle—contains gradle-wrapper for systems that do not have gradle installed.
other gradles files, etc.
local.properties—local path to Android SDK
TIP: Since this file is different for each user, if you are creating exercise files, you can delete this file and it will be created again on the student computer.
build.gradle (app build script that can be configured) - used to tell Android Studio what versions, etc. to use.
NOTE: There is another build.gradle in the project folder that is used for high level instructions that you typically do not change.
settings.gradle indicates which module the current project include.
External Libraries—(not actually a directory) represents Android APIs and JDKs.

The app folder is a module directory. Each project can have multiple modules with each module represented by a directory. To see what module(s) are included in a project, select File > Project Structure... and in the Project Structure dialog box that appears, in the left panel, you will see what Module(s) are included with the project:

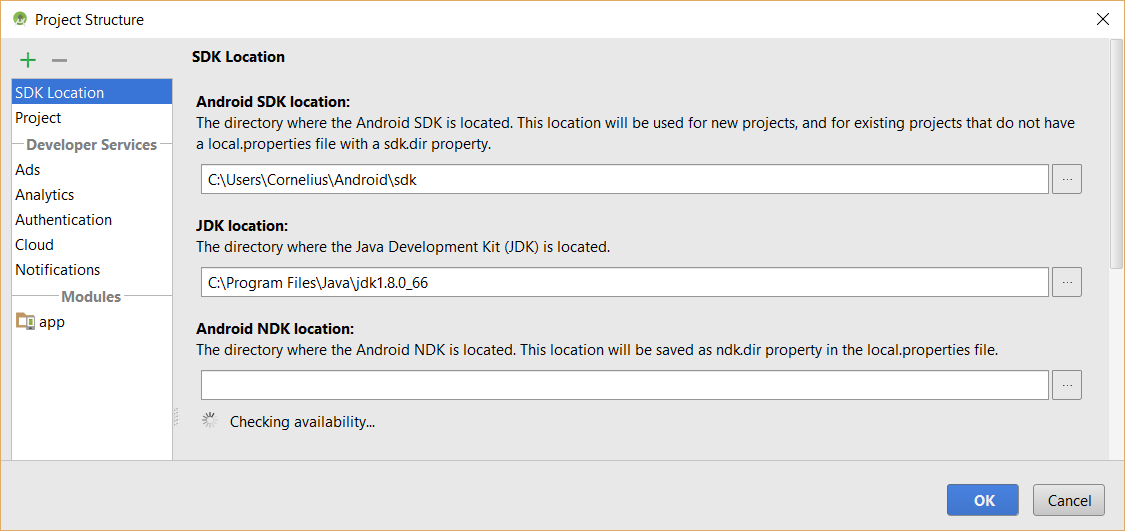

If you click on a module (e.g.,app), you can make changes to the Properties, Signing, Flavors, Build Types, and Dependencies configurations. You will be making changes that are part of the module.
If you click on the items above the Modules, you can make changes that are part of the project and not the module.

3. Packages View

This view presents Java classes and resource files all together in single tree format.

4. Scratches View

This view allows you to copy "scratches" of code that you can use later. To do this, copy some code and then from the menu select Tools > New Scratch File.... so that it appears in a new scratch file. Close the scratch file and then switch to the Android scope and then return to the Scratches panel. You should now see the scratch file listed.

5. Problems View

Show files that need fixing. To test:

Create an error (e.g., remove a required semicolon) from a *.java file and then close it.
Return to the Problems panel and then navigate to the file that has a "problem" and double-click it to open it
To go to the "problem" area press the F2 key and the cursor will go to the location of the problem. You may need to expand the code to see it.
Fix the problem (e.g., add the required semicolon) and you should see the problem item removed from the Problems panel.

6. Production View

Show Java, resource and generated files that are required for production when the app is package.

7. Tests View

Show files that are required for jUnit tests. To perform a test:

Navigate to the test file (ExampleUnitTest) and click on it to open it. It has a simple test to see if a class will work.
Right-click on the class and select Run "ExampleUnitTest" from the menu.

NOTE: This is only a Java test and does not do anything to the app.

8. Android Instrumentation Tests View

This test works with virtual and physical devices. To test:

Navigate to the test file (ApplicationTest) and click on it to open it.
Right-click on the class and select Run "ApplicationTest" from the menu.

NOTE: For more information, go to the link in the test file (e.g., http://d.android.com/tools/testings/testing_android.html).

Android Tabs

There are a host of tabs that surrounds the Android Studio app. Simple click on one to view it.

Structure Tabs

The Structure tab (CMD+7 on Mac or ALT+7 on Windows) can be used to show a "structure" view of the Java classes along with their methods. They are shown by default in the order they are declared. However, you can sort them in any order you want (e.g., alphabetically, by visibility--access modifier). You can also determine what members of the class is going to be displayed. By default, you will see fields and non-public members.

Captures Tab

The Captures tab can be used to "capture" the result of other panels (e.g., Memory) for review later.

Build Variants Tab

The Build Variants tab can be used to "build" different "variants" of your app. By default, you will used the debug variant. However, when you are ready to publish your app for deployment, you will need to use the release variant to build your app.

Favorites Tab

The Favorites tab can be used to save your "favorites" classes and other resources that you like to use often. By default, you will see three items available (Project, Bookmarks and Breakpoints). You can add items to the Favorites from the one of the Project windows. Find what you want to save to Favorites and then right-click on it and select Add to Favorites and then add to the Project or to an New Favorite List. To open a Favorite, double-click on it.

Message Tab

The Message tab (CMD+0 on Mac or ALT+0 on Windows) can be used to provide a listing "messages" from the Gradle build tool. It is different from the Problems tab that is used for Java errors. The Message tab is used to display messages when the app is being built. Double-click on the TODO comment to have the cursor move to the place where the comment is. You can also filter your TODO comments based on the current file or a scope (e.g., Project, Android, Package).

Android Monitor Tab

The Android Monitor tab is used to access to logcat output. By default there is only the Memory monitor. However, if you double-click on the Android Monitor tab, it will allow you to view the CPU, Network and GPU monitors as well. However, these monitors will only be active when you are running a virtual or physical device. Whenever you run your app, the Android Monitor window will open automatically.

TODO Tab

The TODO tab is used to show a list of "To Dos" that you want to write to yourself or others. In your Java code, to write a TODO start with a double slash, type the word TODO follow by a space and then the "to do" item (e.g., // TODO Add more code to this class later). The TODO will be shown in the TODO panel.

Terminal Tab

The terminal tab is used to open a command prompt. On Windows, it opens a simple command prompt and on the Mac, it opens the terminal app. You can run any command that you can on your Operating System (e.g., ls or dir for directory listing on the Mac and Windows, respectively).

Gradle Tab

The Gradle tab is used to ...

Android Model Tab

The Android Model tag is used to ...

Modify Gradle Scripts

The Android project window has a virtual folder called GradleScripts that contain two Gradle scripts and other configuration files in one place.

There are two build scripts with the SAME name, one is for the project and the other is for the module.

Modify Resource Files

Modify Manifest File

The AndroidManifest.xml is an XML file at the top level of the project that describes to the Android Virtual Machine (ARM):

app's name (e.g., Hello, World).
app's package name (e.g., com.examples.HelloWorld)
app's version code (e.g., android.versionCode) - This is a runningNUMBER that identify app version number. it is used to programmatically determine if and app needs to be upgraded.
app's version name (e.g., android.versionName) - This is a STRING that is displayed TO the user (<major>.<minor><point> - 1..2.3)
app's minimum OS version (e.g., android.minSdkVersion)
app's activit(ies) which is akin to HTML pages
app's image (e.g., ic_laucher)
app's permission(s) if any
app's launch activity via intent
app's configuration (e.g., service and content provider)

There are several ways to access this file:

From the Project view, click on the app, src and then a main folder (physical location).
From the Android view, click on the manifests folder (virtual location).
Press the SHIFT key twice and type AndroidManifest and select it from the list.

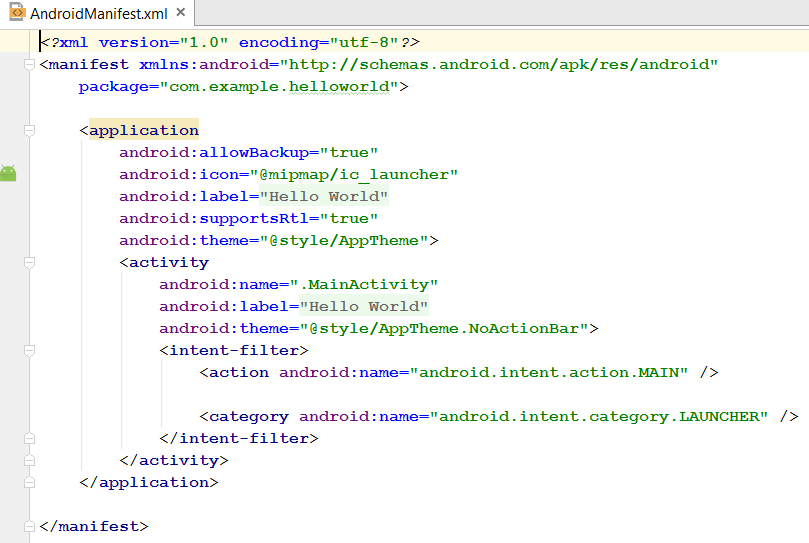

The structure of the manifest file is as follow:

manifest - root element with xmlns (xml namespace) attribute of android (http://schemas.android.com/apk/res/android) which is used by ALL attributes in the file with this prefix (e.g., android:allowBackup, android:icon, android:label, etc.). It also has a package attribute which is used as a unique global app identifier that uses a reverse domain notation along with the name of the app (com.example.helloworld) and MUST match the ApplicationId in the GradleBuild file and the default package in the Java classes in java folder.
NOTE: Since the ApplicationId appears in so many locations, it is best practice to change it using the refactoring menu by clicking on the string and then pressing SHIFT+F6 and then clicking on the Rename package button.
- application - describe app's appearance and more (e.g., icon, label, theme,etc.) via attributes:
  - allowBackup - used to determine if the app will be backup to Google.
  - icon - control the graphic that is displayed on the launcher screen.
  - label - the app name
  - supportsRtl - determine right-to-left text rendering
  - theme - app's theme
    NOTE: In the icon and theme attributes, the @ character followed by a string indicates the name of the resources folder where the file is located (e.g., @mipmap/ic_launcher). Notice that the label attribute is both in the application and activity elements. The label at the activity element is what a user will see in the title bar of the screen. The label in the application element is what is displayed on the home screen. If you hover over on of them, a tooltip will pop up showing that it is actually a resource like the other attributes (e.g., @string/app_name). Double-click on either of these strings to show the name that is actually in the file. Then, hold down the CTRL (PC) or CMD (Mac) key and click on it to open the strings.xml file to make any changes and then save the file.
    TIP: It is best practice to use a string resource and not a literal string when referring to a string in the app's manifest file.
    - activity - EACH screen in an app is known as an activity that has to be listed in the manifest file that is the name of a Java class. An activity is a screen with an interface (e.g., buttons, etc.), unlike a service that runs in the background and does not have an interface. A Broadcast receiver runs in the background and make invoke an interface regardless of the app that is running (e.g., a notification that the battery is running low, an email alert, etc.).
      - name - the name of the Java class. To open it, hold the CTRL (PC) or CMD (Mac) key and click on it.
        NOTE: Notice the dot (.) in front of the package name that represents the default package (e.g., com.example.helloworld). So this code could have been written as com.example.helloworld.MainActivity. However, the dot makes the syntax more concise.
      - label - overrides the label for screen.
      - theme - overrides the theme for app.
      - intent-filter - The first activity that opens when an app load is called the launcher activity which is defined in the intent filter element. There are two elements in the intent-filter. The intent-filter can also be used to open activities from apps when other apps request data.

        action - usually set to MAIN (e.g., <action android:name="android.intent.action.MAIN" />) that serves as a starting point for an app.

        category - usually set to LAUNCHER (e.g., <action android:name="android.intent.category.LAUNCHER" />) which indicates that can be launch from the launcher icon.

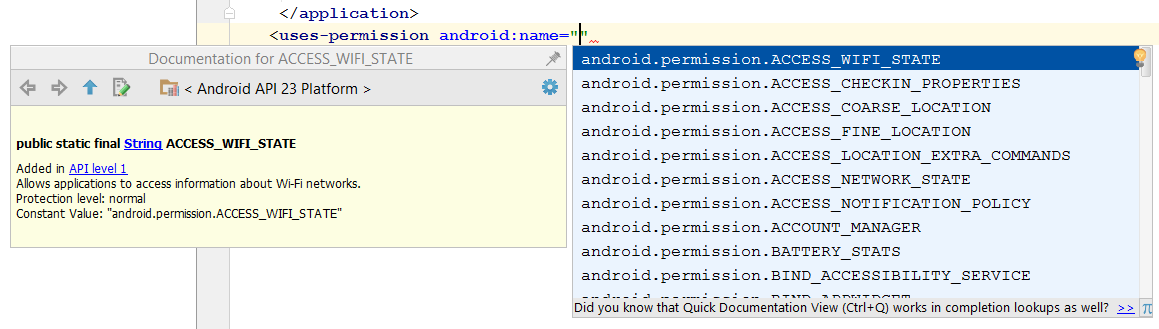

- uses-permission (not shown in screenshot above by default but can be added) - used to ask for permission to use certain features on an end user device (e.g., WIFI). The app store will inform the user of permissions that are being requested when an app is installed and he or she has the option to stop the installation. You should only add the permissions that the app actually intend to use and then add Java code to take advantage of those permissions.
  TIP: As a child element of the <manifest> element, if you type the word uses, you will see a list of permissions.
  - Select uses-permission and then press the Enter key
  - Select android.permission.ACCESS_WIFI_STATE from the list and press the ENTER key again
  - Close the tag with "/>"

NOTE: It is important to note that an app's configurations are split between the Gradle script and the app manifest file.

Modify Resources

Every Android project has a res folder with a host of resource folders in it.

From the Project view, click on app, src, main and then the res folder (physical location).
From the Android view, click on app and then the res folder. Under this folder are the sub-folders that defines:
- drawable - graphical resources
- layout - activities or screen appearance (e.g., activity_main.xml) in an xml file
- menu - menus and action bar items (e.g., menu_main.xml) in an xml file
- mipmap - launcher icons (e.g., *.png)
- values - strings, dimensions and styles in xml files (e.g., strings.xml)

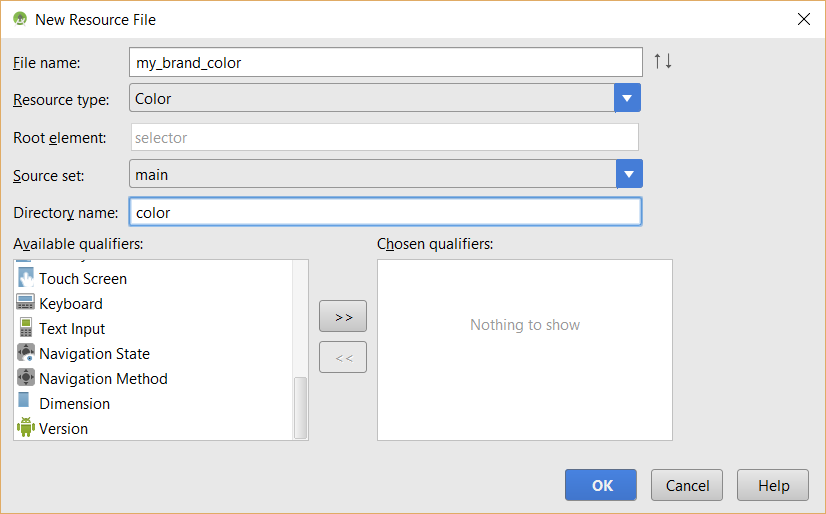

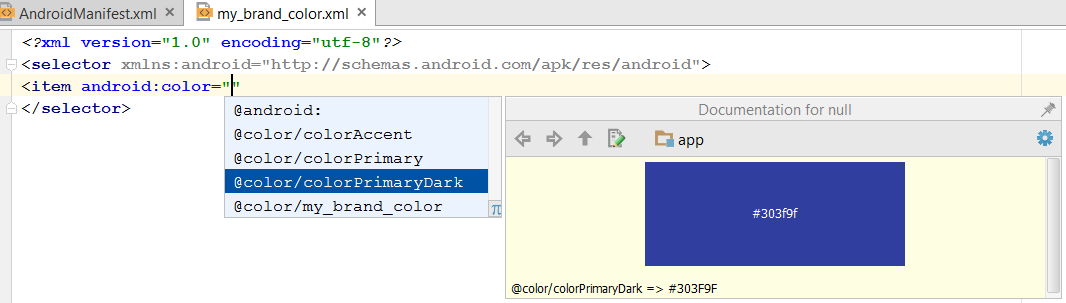

However, there are other resources that can be created (e.g., color, xml, transition) that can be defined in its own file manually or automatically with Android Studio. The SDK document describe these resources detail. To define a brand color that can be used in an app:

Modify Support Libraries

Android Studio's dependency system is based on the Maven repository which is a host of libraries where developers can add or download libraries. If you open the build.gradle file, you will see a list of support libraries in the dependencies directives. These libraries were automatically included when you selected the Support Repository checkbox when Android Studio was installed.

appcompat library - will allow features to be added that will work on older version of the API back to version 7.
design library - includes components (e.g., floating action button or fab) that you can add to an app.

You can find the Support Repository by clicking on the SDK Tools tab in the SDK Manager, and then you'll see the Support Repository listed here. During compilation, the build process looks at these directives and unique identifiers for the libraries and the versions you want to use. First, it looks at the local repository copy of the SDK installation to get them. However, if it doesn't, it can be manually added from a remote repository.

If you want to work with JSON (JavaScript Object Notation) formatted data and wanted to use Google's GSON library to include as a dependency, you could follow these steps:

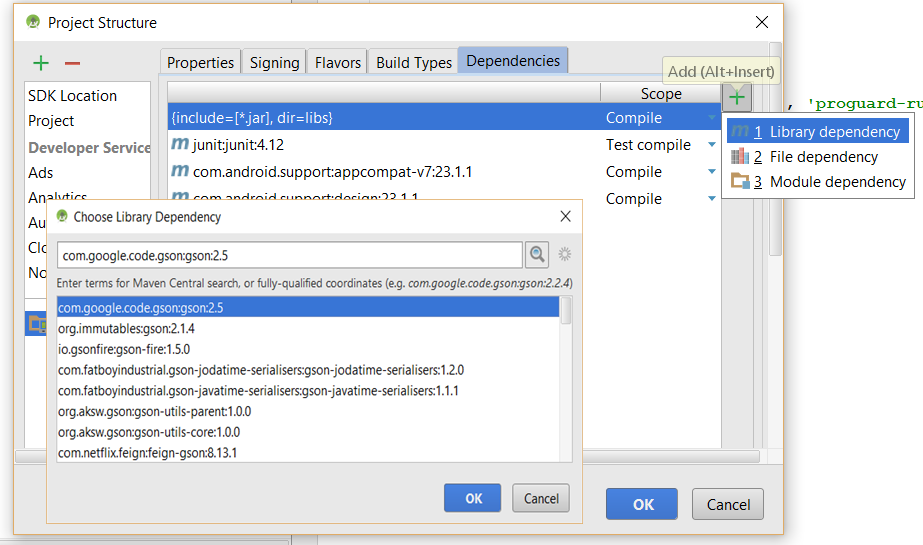

Choose File... > Project Structure and in the dialog box that appears, click on the app Module and then click on the Dependencies tab.
CHECK POINT: Notice that the number of lines match the number of lines in the dependencies block in the gradle.build file.
Click the plus (+) button and select Library dependency from the drop-down list to see a listing of all the known dependencies.
In the Choose Library Dependency dialog box that appears, type GSON in the Search field or scroll down and find it and then click the OK button.
Click the OK button again to close the Project Structure dialog box.
CHECK POINT: You should see it added to the existing list of libraries and as a new compiled directive in the build.gradle file.
To test it, go to the MainActivity class and type the following highlighted code in the onCreate method to create an instance of that class:

Gson gson = new Gson();

NOTE: Because the library was added as a dependency in the build.gradle file earlier, notice that Android Studio recognize the class and its package to perform auto-complete.
CHECK POINT: Click on the plus (+) sign next to the import statement at the top of the file to expand it. You should see that it added the import statement for that class.

The bottom line is that you don't have to add a Java library (*.jar) to the projects folder and then adding it to the class path using this method. In the build.gradle file, notices there is a section on repositories that has a reference to a method called jcenter. If you hold down the CTRL or CMD key and then hover the cursor over this method, you see that it is returning an instance of the class named MavenArtifactRepository that is referencing the Bintray website. If you learn how dependencies work, you can add your own repositories to this list and expand the capabilities of the gradle build system.

There are several online open source libraries that are available for Android development. Type in a search field (e.g., gson) to search for a particular library.

Bintray (https://bintray.com)
The Central Repository (http://search.maven.com)

Add JAR Files

Add JAR file to Dependency

Whenever possible, you should use dependencies that refer to remote files. However, that is not always the case (e.g., your own library or a third party library). So you have to add them manually to your project.

Copy a *.jar file from somewhere
Switch to the Project scope and navigate to the app/libs directory and paste the *.jar file into it and in the Copy dialog box that appears, click the OK button.

ALTERNATIVE: You can also drag-and-drop the *.jar file from the File Explorer on Windows or Finder on Mac.
CHECK POINT: The *.jar file classes might not be available to the app even though the build.gradle file has a directive that specific all jar file in the library be included (e.g., compile fileTree(dir: 'libs' , includes: ['*.jar']).However, if you attempt to create an instance of the class, you may not see that version from the library. To resolve this, right-click on the *.jar file and select Add As Library... and then in the Create Library dialog box that appears, click the OK button which will add it to the dependencies in the build.gradle which will make the library classes immediately available in your app. Now, if you create an instance of the class library, it will show up in the list of classes available.

Add JAR file to Module

Beside adding a JAR file from remote library dependencies or local JAR file dependencies, another way is to "wrap" a JAR file or files with its own module. Which option you choose depends on the project complexity or your own preferences.

Create a new module by selecting File > New > New Modules... and in the New Module dialog box that appears, select the .JAR/.AAR package and then click the Next button.

NOTE: There is a host of module that you can choose from (e.g., Phone, Tablet, Wear, TV, Glass)
In the next screen that appears, browser to the JAR file that you want to import by clicking on the Browse button and then clicking the OK button and then click the Finish button.
Choose File > Project Structure... and choose the app module and then click on the plus icon (+) at the bottom of the screen and select Module dependency from the drop-down list to tie the module to the app and then click the OK button twice.
CHECK POINT: You can add any Java code that is part of that module and it will be available to your app module.

Import/Export Settings

Import and Export Settings

Once you have established your Android Settings (PC) or Preferences (Mac) to see its Appearance and Behaviors and if they get corrupted or you want to use them on another computer, you can export the current settings and then import them onto another computer so that you don’t have to go through the same steps again.

Go to File > Export Settings and in the Export Setting dialog box that appears choose the settings you want to export by clicking on the checkboxes.

TIP: You can also click on the Select All or Select None buttons to select and then deselect the settings you want to save.
In the Export setting to text field, provide a path to where you want the settings to be saved (e.g., /User/Cornelius/Desktop/setting.jar) and then click the OK button.

TIP: You can change the extension on the settings.jar to settings.zip to see the files structure.
In the Export Complete dialog box click the Reveal in Finder (Mac) or Reveal in Explorer (PC) button to go the folder the setting is located in.
Close the current project and delete the preference folder (e.g., AndriodStudioPreview).

Mac: Go to the Preferences folder (e.g., ~/Library/Preferences).
Windows: Go to Settings folder in the Android Studio Home directory.

Restart Android Studio:

Mac: Go to the Applications folder and double-click on Android Studio
Windows: Go to the Start menu and select Android Studio

NOTE: If you are using a beta version find and double-click on the installer.

In the Complete Installation dialog box that appears, you could import the setting from a previous version of Android that you currently have installed or you could import from a custom location. However, we want to use the third option to manual import the settings.
CHECK POINT: You should now see the Welcome screen because Android Studio does not have preferences or settings file to work with. And if you click the select the default option for all of the prompts and then click the Finish button, Android Studio will open the welcome screen. Open an existing Android Studio project and open an *.java file. You should see that all of your settings (e.g., font, method dividers) are gone.
Select File > Import Settings… and then navigate to the import file. If you placed it on the desktop, select:

Mac: CMD + D
Windows: CTRL + D

Select the settings.jar file and then click the OK button.
In the Select Components to import dialog box that appears, select the settings that you want to import.

TIP: You can also click on the Select All or Select None and then click to select or deselect a setting.
Then, click the OK button.
In the Restart Needed dialog box that appears, click, the OK button to restart Android Studio.
CHECKP POINT: Go back to the *.java file and you should see your settings restored.

Import Eclipse with ADT

To import a project from Eclipse with ADT (Android Developer Tools), once you import the project, you will need to make some configuration changes to the build.gradle file to make is compatible with a current version of Android Studio.

From the Android Studio’s Welcome screen, click on the Import project (Eclipse ADT, Gradle, etc) link from the list and navigate to the project and then click the OK button
In the Import Project from ADT (Eclipse Android) dialog box that appears, click the Next button.
On the next screen, keep all of the default checkbox options and then click the Finish button to import the project.
CHECK POINT: In the Message panel that appears, you may see that the project failed because it failed to find target with hast string ‘android-XX’ in …/Android/sdk where XX is the version that the app was created with.

TIP: To find out what Android version that corresponds to, open up the SDK Manager and look at the version level next to the API level. (e.g.,
Android 4.2 (Jelly Bean) is API 17). You could download that API level but it is better to upgrade to the new API level explained next.
Open the Project window and navigate to the app module and click on the build.gradle file to open it.
Change:

compileSdkVersion and targetSdkVersion to the latest version (e.g., 17 to 23)
compile dependencies to the latest version(s) (e.g., ….support-v4:23.0.0).

NOTE: You may get a warning that the support library might not be installed. Click the Try Again link at the top of the screen to sync the gradle file with the project. You may also see a message at the bottom of the screen informing you that there is a more recent version of the support library. Change it to the latest version (e.g., ….support-v4:23.2.0) and then click the Sync Now link.

CHECK POINT: You should not see any warnings or errors. Run the app on your device to see if it works properly.

Developer Docs/Training

Google provides useful documentation and training on-line at developer.android.com/develop, installed off-line documentation with the Android Studio installation or in-place documentation within code. These documentations allow a developer to learn the Android framework by Java Classes and APIs that can be searched or viewed by API version number or name. To access the in-place documentation of a selected Class, press CTRL+Q (PC) or F1 (Mac) or hold down the CTRL key and move cursor over a Class name.

On the developer website listed above you can find information on:

News - http://android-developers.blogspot.com/

Questions about Android and programming in general - http://stackoverflow.com/

Import Sample Apps

Another way to test and learn how to use Android Studio is to import sample apps.

Open Android Studio, go to File > New > Import Sample... and select a sample from the list and then click the Next button.

NOTE: You can click the browse the source in GitHub link to view the source files. You will have to install Git on your computer if you don't already have it installed or go DIRECTLY to GitHub and clikc on the Download zip file to download the file from there.
Accept the defaults and then click the Next button.

NOTE: Many samples may use a older version of the Android Build Tools. You could update the Gradle file to the latest version or click the link at the bottom of the screen and follow the prompts, click the Accept radio button and then click the Next button to download the needed Build Tools.
In the Configure Sample dialog box that appears, accept the defaults and then click the Finish button and return to Android Studio.
In the Language Level Changed dialog box, you will be prompted to reload the project, so click the Yes button.
Click the Run button and choose a virtual device and then click the OK button.
CHECK POINT: You should see the app load in the virtual device.
(Optional) Return to Android Studio and examine the files that were created from the sample app.

Integrate Source Control

Android Studio also provide ways to integrate with many source control packages (e.g., CVS, Subversion, git) via add-ons which allow it to manage checking out files, etc. However, not all files are suitable for source control (e.g., files in the bin and gen directories).

To exclude these files, add some extensions to the exclusion list (e.g., *.apx, *.ap_, *.dex). [CONFIRM]

Optional Processes (Windows/Mac)
